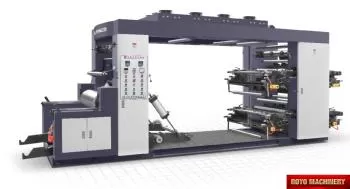

New Wide Flexo Press Rytb 41300
New Wide Flexo Press Royo Machinery RYTB-41300, Features: 3" air shafts for wind and unwind, Anilox roller range: 300-1000 LPI, Anilox ultrasonic cleaning machine (optional), Central lubrication, Ceramic anilox rollers, Corona treatment (optional), Drying system, Electronic tensioning control, Electronic web guide , Gear pitch: 1/16", Hot air dryer (one per 2 units), Material thickness: 30-300 gsm, Materials: Film PVC OPP PE BOPP PE NY PET CPP Paper PP woven non-woven, Max. Number of Colors: 6, Max. printing width: 49.5", Max. unwind & rewind diameter: 47.25", Max. unwind & rewind roll weight: 1 Ton, Max. web width: 51", Number of colors: 4, Photopolymer thickness: 1.14 1.7 2.28 2.84 & 3.94mm, Plate mounting machine with camera (optional), Precision: +-0.006", Printing Length: 11.75-39.25", Roll to Roll, Roller swiveling wheel, Shaftless unwind , Speed: 120-150m/min, Suggested HS code: 8443.16.0090, UV Dryer (optional), Video inspection system (optional), Wireless remote control.
Feeder:
1. Single unwinder system, manual loader for unwind system
2. Automatic stop machine when breaking the material; When the machine stop, keep tension and avoid the material loose or line deflection.
3. Air shaft
4. EPC (edge position control): With manual/automatic/central return function, can adjust the rewind to the left and right.
5. Automatic tension control system with magnetic brake (10KG).
6. Roller core diameter: 76mm
7. Discharge maximum diameter: 1000mm
Printing section:
1. Plate roller circumference: 300-1000mm, standard less than 400mm
2. Print material: resin plate or rubber plate
3. Transmission between printing roller and anilox roller: Helical gears
4. Printing chromatography: 360-degree rotation
5. Adjustment method: Manual (Automatic printing after manual adjusting, when starting the machine, there is no need to register color again, the printing pressure and register are automatically maintained)
6. Printing roller lifting system: pneumatic
Drying system:
1. The machine is equipped with a blower and heater; the heater employs a central temperature control system
2. Dry apparatus between each color and one more dry apparatus after the last unit
Rewinding Section:
1. Single rewinder system, manual loader for rewind system
2. Film central rewind system
3. Air shaft
4. Automatic tension control system with magnetic brake (10KG)
5. Roller core diameter: 76mm
6. Discharge maximum diameter: 1000mm
| Type: | Wide Flexo Press | ||
| Manufacturer: | Royo Machinery | Model: | RYTB-41300 |
UV Dryer (optional), Roll to Roll, Precision: +-0.006", Printing Length: 11.75-39.25", Number of colors: 4, Max. web width: 51", Max. Number of Colors: 6, Hot air dryer (one per 2 units), Electronic web guide , Electronic tensioning control, Corona treatment (optional), Ceramic anilox rollers, Suggested HS code: 8443.16.0090, Wireless remote control, Video inspection system (optional), Speed: 400-500ft/min, Shaftless unwind , Roller swiveling wheel, Plate mounting machine with camera, Photopolymer thickness: 1.14 1.7 2.28 2.84 & 3.94mm, Max. unwind & rewind diameter: 47.25", Max. printing width: 49.5", Gear pitch: 1/16", Drying system, Central lubrication, Anilox ultrasonic cleaning machine, Anilox roller range: 300-1000 LPI, 3" air shafts for wind and unwind, Materials: Film PVC OPP PE BOPP PE NY PET CPP Paper PP woven non-woven, Material thickness: 30-300 gsm, Max. unwind & rewind roll weight: 1 Ton, Specifications are subject to change without notice
