New Die Cutter Royo Machinery

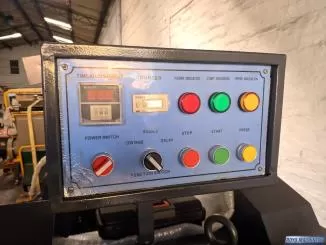

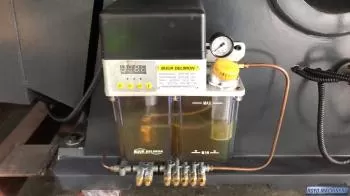

New Die Cutter Royo Machinery TYMB1100, Features: 5mm steel plate, Air clutch, Central lubrication with auto pump , Corrugated board up to 4mm, Cycle control: Single cut and stop at the open position - time delay open position - continuous cycle, Digital LED control panel, Dimensions: 2250 x 2200 x 2000 mm , Foil feeding units: 3 (Longitudinal advance) , Foil Stamping, Hand Feed, Heavy Duty, Max. Die Cutting Pressure: 220 Tons, Max. Die cutting size 1100 x 800mm, Max. Foil advance: 800mm, Max. Paper Size: 1080 x 780 mm, Max. Speed: 1200 strokes per hour, Micro adjustment device, Paper thickness: 100-2000 gsm, Pneumatic die plate ejector, Programmable foil advance, Suitable paper 1-8 mm corrugated paper (including laminated), Total Power: 19kw, Total Weight: 5 Tons , Voltage: 220V 3PH 60Hz
| Type: | Die Cutter | ||
| Manufacturer: | Royo Machinery | Model: | TYMB1100 |
Paper or cardboard thickness: 100-2000 gsm, Pneumatic die plate ejector, Max. Foil advance: 800mm, Max. die cutting pressure: 220 Tons, Hand Feed, Foil Stamping, Foil feeding units: 3 (Longitudinal advance) , Corrugated board up to 4mm, Central lubrication with auto pump , Voltage: 220V 3PH 60Hz, Total Weight: 5 Tons , Total Power: 19kw, Suitable paper 1-8 mm corrugated paper (including laminated), Programmable foil advance, Max. Paper Size: 1080 x 780 mm, Max. die cutting size 1100 x 800mm, Dimensions: 2250 x 2200 x 2000 mm , Digital LED control panel, 5mm steel plate, Cycle control: Single cut and stop at the open position - time delay open position - continuous cycle, Air clutch, Micro adjustment device, Max. Speed: 1200 strokes per hour, Heavy Duty, Specifications are subject to change without notice
Royo Machinery is one of the world's most experienced suppliers of new and used printing, finishing and carton converting equipment worldwide. We have sold more new and used offset printing and finishing equipment to the Caribbean and Latin American printers than any other dealer over the last 76 years. Our exceptional relationship and understanding of the region gives our company a competitive edge over competitors.
The Royo Family has accumulated the expertise to help you with the logistics and the engineering required to manage the process of buying and selling new and used printing, finishing and converting machinery anywhere in the world. We offer additional services such as pre-purchase inspections, dismantling and removal, parts, cleaning and painting, rebuilding and retrofitting, transportation, installation and demonstration, after sales service and warranty, appraisals and professional consultation.
Being in the industry since 1948 has allowed us to build a global network dedicated to finding the new or used printing, finishing and carton converting equipment you might be looking for at the most competitive prices. Let us help you find the Offset press, Paper Cutter, Folder, Die Cutter, Box Folder Gluer, UV Coater, Roll Sheeter or Laminator you are looking for.
