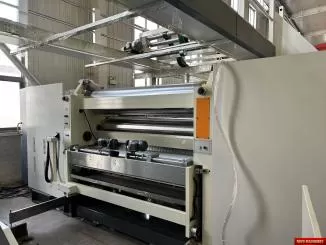

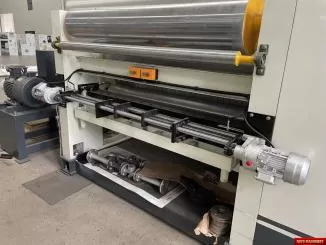

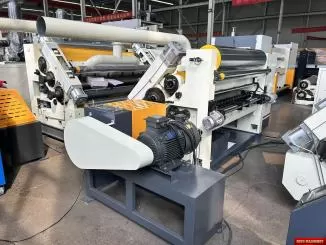

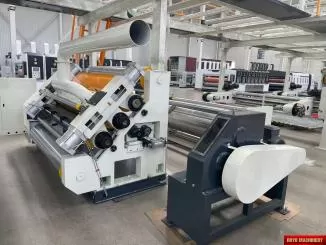

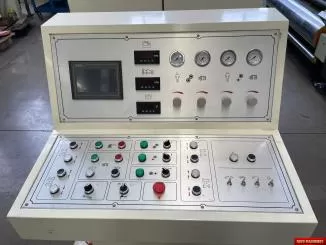

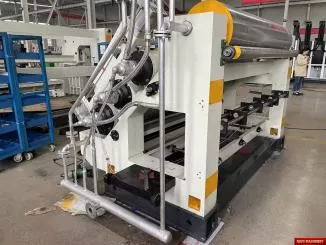

New The Royo Machinery RSF-D280 corrugated cardboard single facer features a simplified design structure at an economic price intended for small and medium-sized carton manufacturers. The machine parts work in conjunction with the automation program for minimal labor intensity. The PLC program control and easy to use interface allow for simple and safe operation. The inner suction single facer SF-DN features advanced inner suction technology, utilizing flute rollers designed with a slot shape for energy saving operation. The design features minimizes consumption, high suction capacity, well-fluted profile, and high intensity operation. The surface of the single-corrugated sheet is even and beautiful without ring indentations from the outer suction single facer. It is suitable for micro-corrugated cardboard sheet production. - Machine Features: Corrugated Roller Diameter: 320mm/48CrMo Steel, Fingerless type, Glue Roller Diameter: 215mm/45# Steel, Heating method: Steam, Maximum Speed: 120 m/min, Power: 20 kW, Preheating Roller Diameter: 405mm/45# Steel, Pressured Roller Diameter: 284mm/45# Steel, Steam Consumption: 0.5-0.8 Tons/Hour , Temperature range: 160-200 Celsius, Wall Thickness: 130mm/HT200 Casting, Working width: 1200-2000 mm
Type: | Corrugator | ||
Manufacturer: | Royo Machinery | Model: | RSF-D-280 |
Working width: 1200-2000 mm, Pressured Roller Diameter: 284mm/45# Steel, Preheating Roller Diameter: 405mm/45# Steel, Maximum Speed: 120 m/min, Glue Roller Diameter: 215mm/45# Steel, Fingerless type, Corrugated Roller Diameter: 320mm/48CrMo Steel, Wall Thickness: 130mm/HT200 Casting, Temperature range: 160-200 Celsius, Steam Consumption: 0.5-0.8 Tons/Hour , Power: 20 kW, Heating method: Steam , Specifications are subject to change without notice
Royo Machinery is one of the world's most experienced suppliers of new and used printing, finishing and carton converting equipment worldwide. We have sold more new and used offset printing and finishing equipment to the Caribbean and Latin American printers than any other dealer over the last 76 years. Our exceptional relationship and understanding of the region gives our company a competitive edge over competitors.
The Royo Family has accumulated the expertise to help you with the logistics and the engineering required to manage the process of buying and selling new and used printing, finishing and converting machinery anywhere in the world. We offer additional services such as pre-purchase inspections, dismantling and removal, parts, cleaning and painting, rebuilding and retrofitting, transportation, installation and demonstration, after sales service and warranty, appraisals and professional consultation.
Being in the industry since 1948 has allowed us to build a global network dedicated to finding the new or used printing, finishing and carton converting equipment you might be looking for at the most competitive prices. Let us help you find the Offset press, Paper Cutter, Folder, Die Cutter, Box Folder Gluer, UV Coater, Roll Sheeter or Laminator you are looking for.
