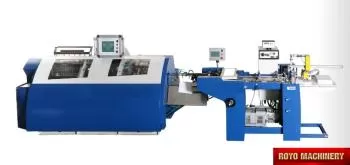

New Book Sewing Machine Royo Machinery

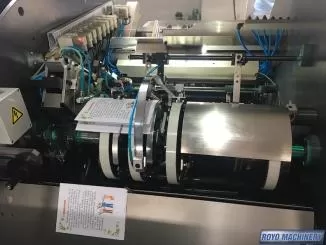

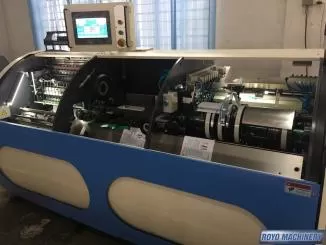

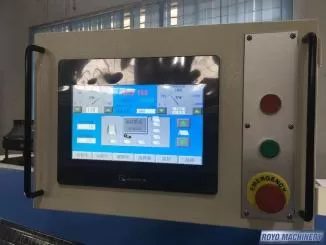

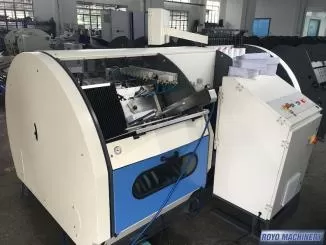

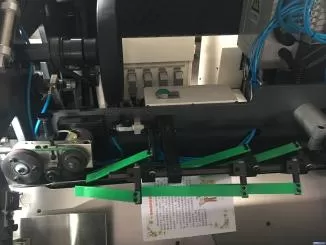

New Book Sewing Machine Royo Machinery RLQ56-SX160: Folding unit: -Using the most advanced paper separation and feeder system in the world, it can continuously complete the folding and locking functions of a book according to page numbers, and it can also realize batch production tasks. -Folding speed: The highest speed can reach 220 m/min, the paper feeding is reliable and stable. State of the art folding rollers with strong paper grabbing, anti-rust, and light ink sticking. -High folding accuracy: paper can be safely transported to achieve extremely high precision and excellent production efficiency. -Intelligent control: The electrical system is controlled by microcomputer, color touch screen, monitoring the whole process of feeding, conveying, multi-piling, missing signature or sheet. -Troubleshooting: When there are missing posts, multiple posts, jams, dropped posts, shrink posts and other faults, the machine will give an alarm and stop, and display the fault. -Storage memory: can store a variety of different jobs, jobs can be easyli called and repeated. -Misalignment detection system. Sewing unit: -High speed and high precision: The maximum speed can reach 160 signatures/minute. The signature on the thread-locking saddle can be accurately positioned by the pull rule of the upper and lower synchronous belt structure. -Intelligent control: color touch screen, monitoring the whole process of feeding, conveying, multi-sticking, missing sticking, locking, receiving, etc. to ensure the quality of the locked wire. -Troubleshooting: When there are missing posts, missing posts, multiple posts, jams, dropped posts, shrink posts, and broken lines, the machine issues an alarm and stops, and displays the fault at the same time. -With optional mismatch detection function "optional". -Storage memory: can store a variety of different locking programs, can be repeatedly called. -Automatic plate adjustment: Set the size of the signature on the touch screen, press the start button after confirmation, and the transmission system automatically positions the conveyor belt, which is easy to learn, fast to operate, fast to change the board, and improve production efficiency. -Transfer of signatures: The transferred signatures are put on the conveying guide rails and pushed by the conveying chain hook; they are fed into the line-locking saddle through the acceleration wheel, and the speed of the acceleration wheel is automatically adjusted according to the running speed of the whole machine. -Automatic book cutting and cutting: The automatic book cutting and thread cutting device can accurately cut without pulling the wire (cut the extra thread head to about 10mm to facilitate plastic installation). No matter how many books are composed of books, the book divider can be set according to the settings. Separate them one by one to avoid tearing the spine. -Lubrication on demand: centralized oil supply lubrication system, alarming when oil pressure is insufficient, equipped with timing and quantitative lubrication device, when starting up, the points that need to be lubricated obtain regular and quantitative lubricant through the lubrication pipeline. Features: Automatic flat sheet infeed, Automatic signature infeed, Computarized sentting, Dimensions (LxWxH): 6340 x 2560 x 1700 mm, Feeding Pile Height:600mm, Hook needle, Max. Number of stitches: 10, Max. Sewing Speed: 160 signatures per minute, Max. sheet size: 560 x 510 x 1.5 mm, Max. signature size: 430 x 320 x 1.5 mm, Min. sheet size: 200 x 150 x 0.5 mm, Min. signature size: 120 x 75 x 0.5 mm, Pile feeder, Straight needle


Specifications

Type: Book Sewing Machine
Manufacturer: Royo Machinery Model: RLQ56-SX160


Features:

Straight needle, Pile feeder, Min. signature size: 120 x 75 x 0.5 mm, Min. sheet size: 200 x 150 x 0.5 mm, Max. signature size: 430 x 320 x 1.5 mm, Max. sheet size: 560 x 510 x 1.5 mm, Max. Sewing Speed: 160 signatures per minute, Max. Number of stitches: 10, Hook needle, Feeding Pile Height:600mm, Dimensions (LxWxH): 6340 x 2560 x 1700 mm, Computarized sentting, Automatic signature infeed, Automatic flat sheet infeed, Total Weight: 5000 Kg

Video

New-machine tags: Book Sewing Machine
