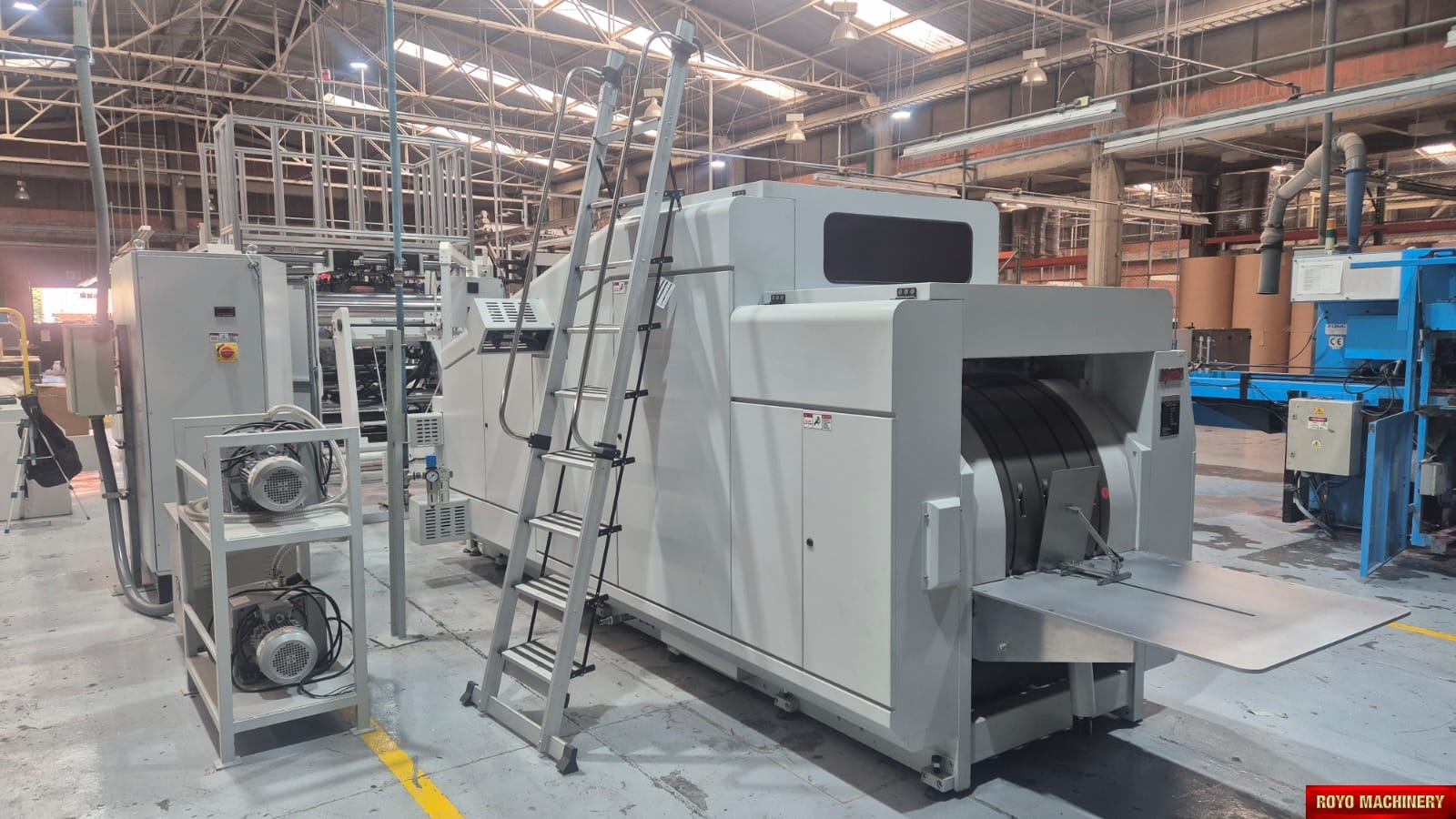

New Paper Bag Making Machine Royo Machinery

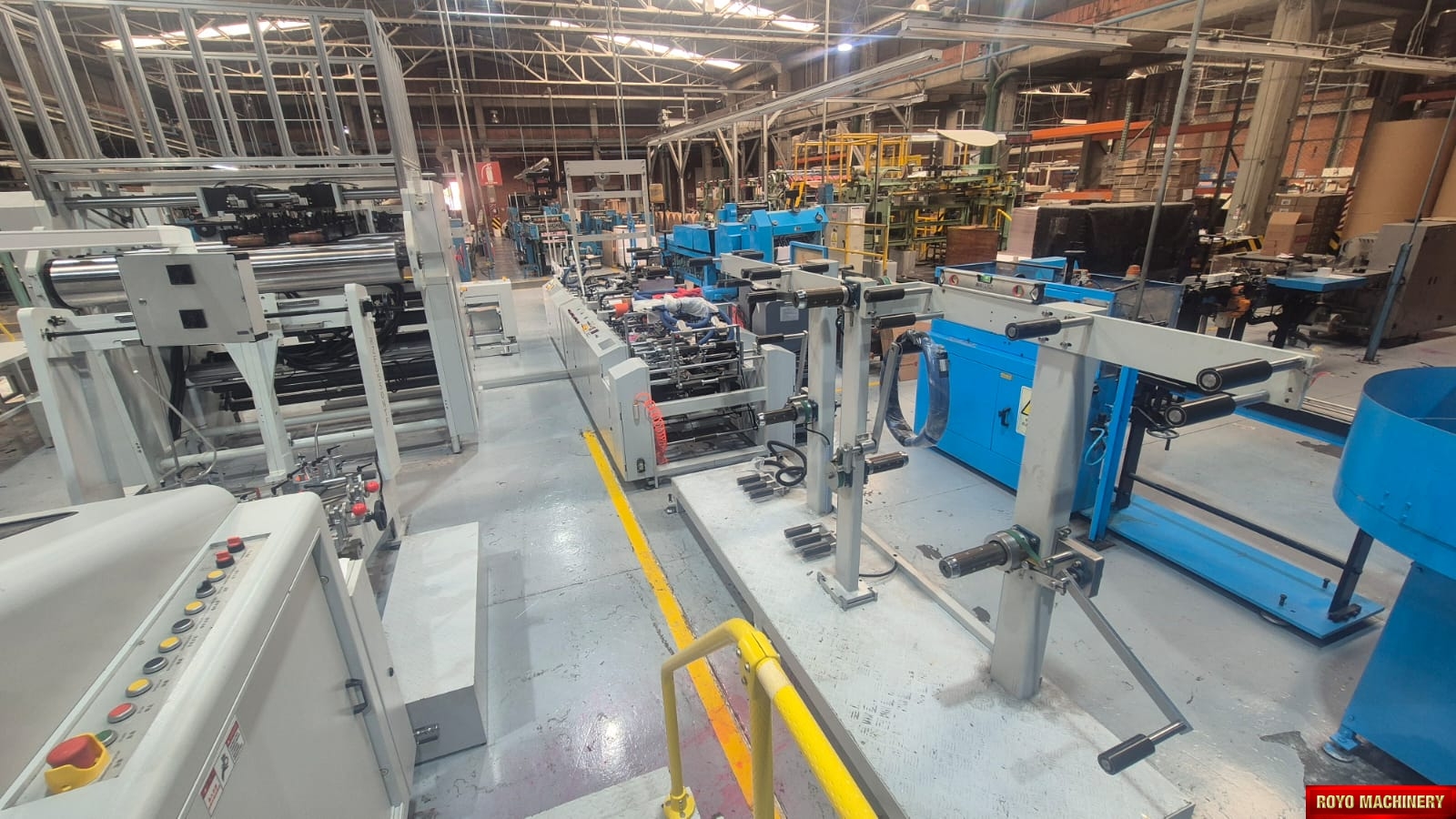

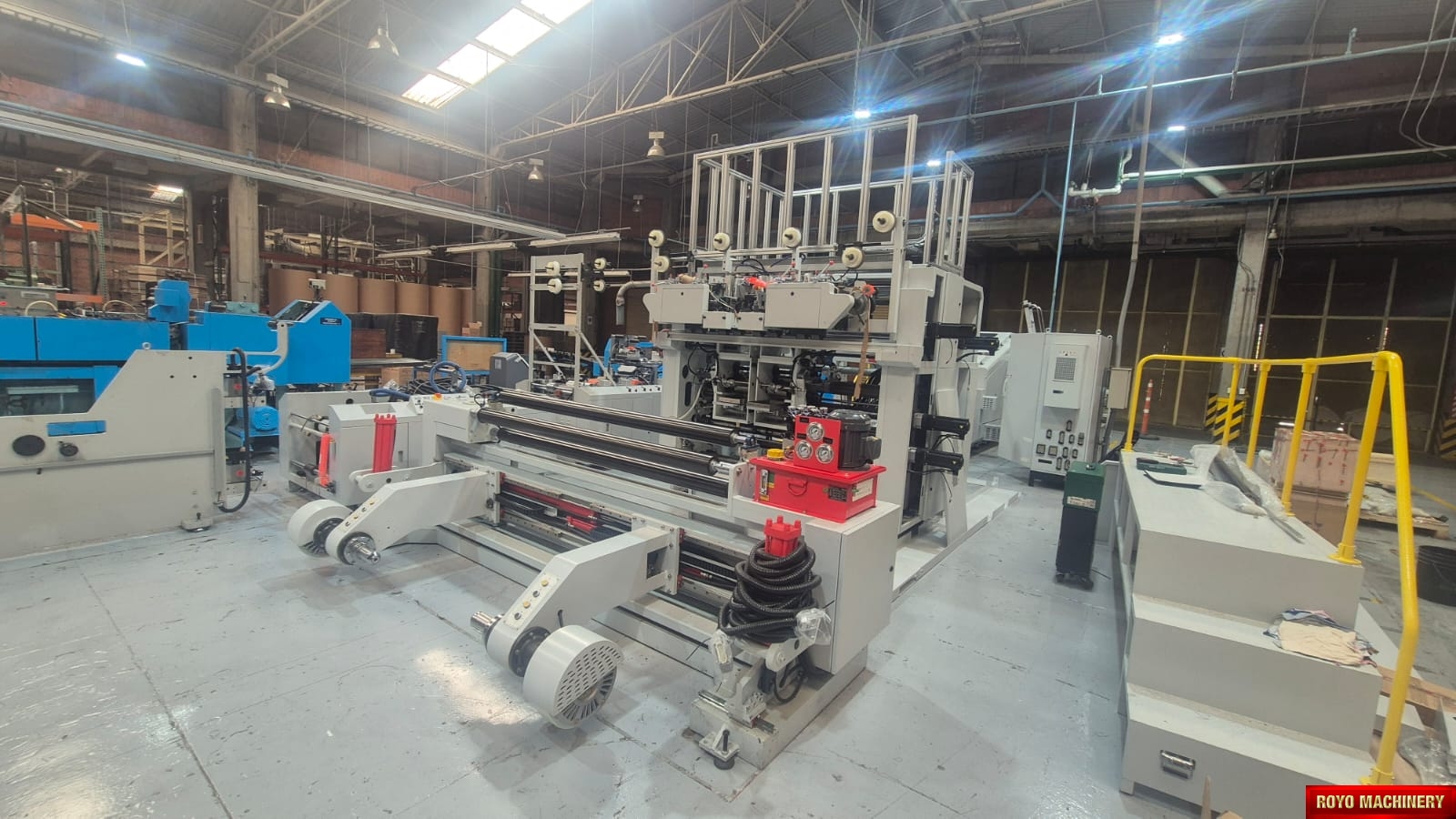

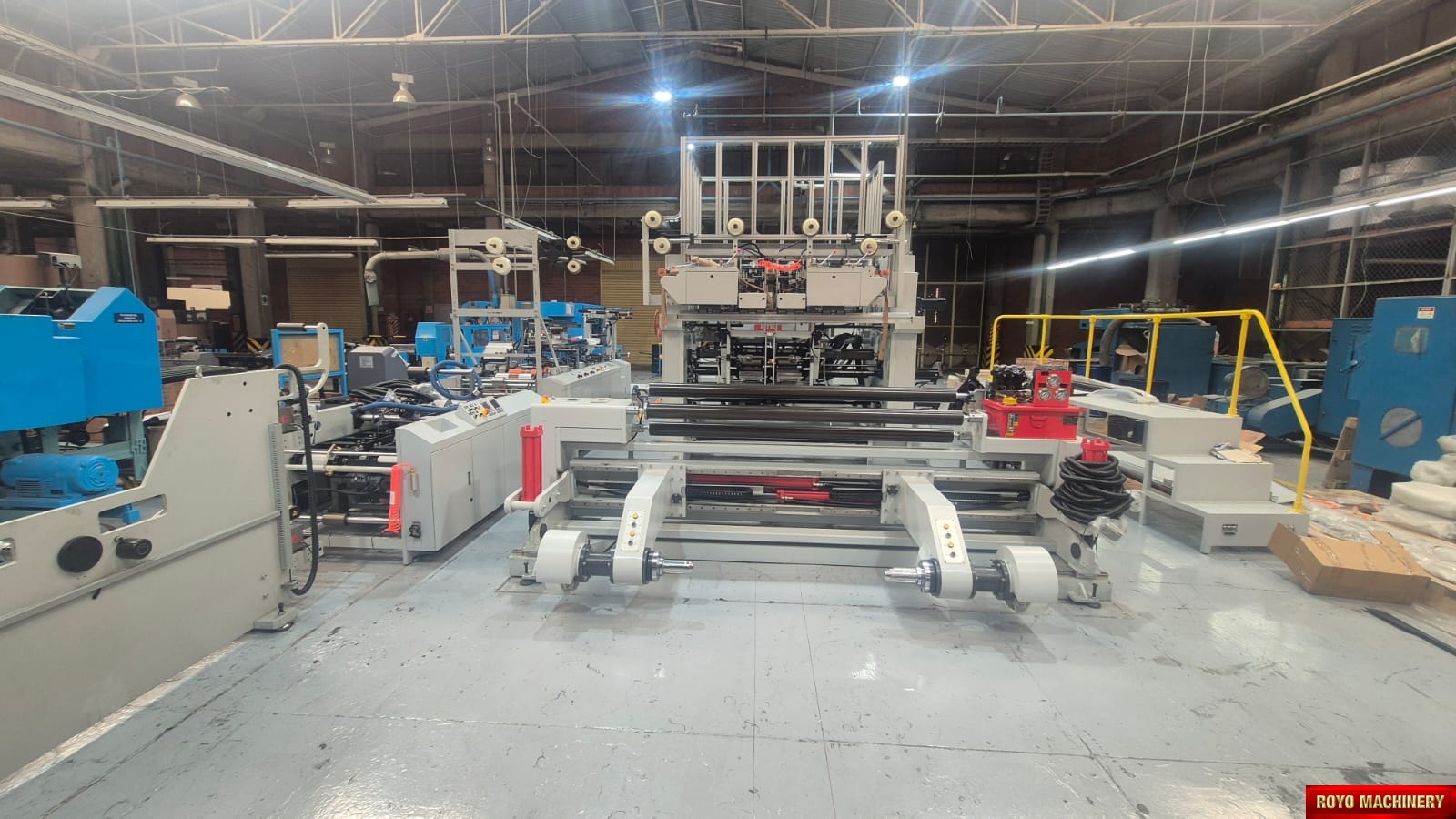

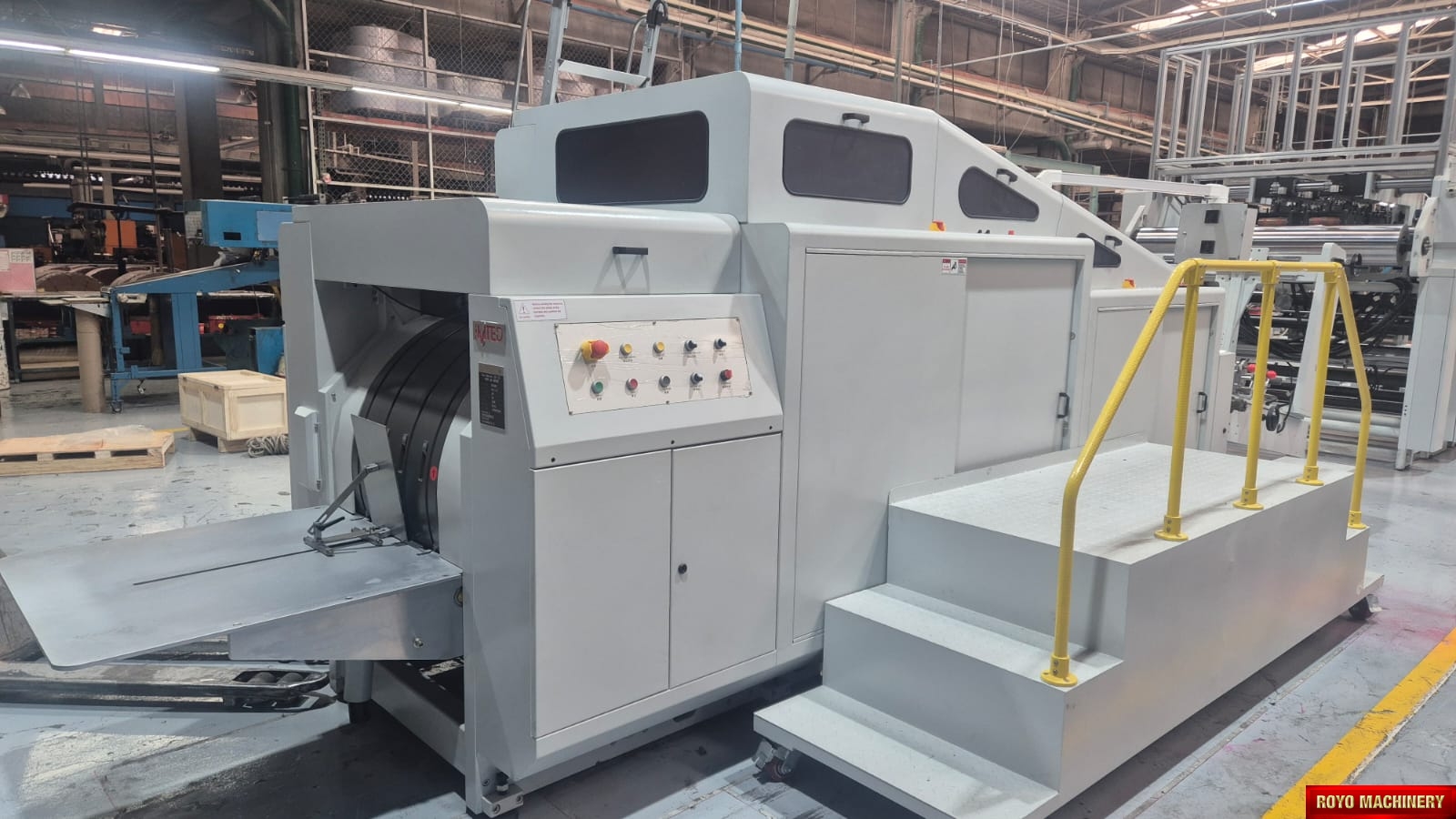

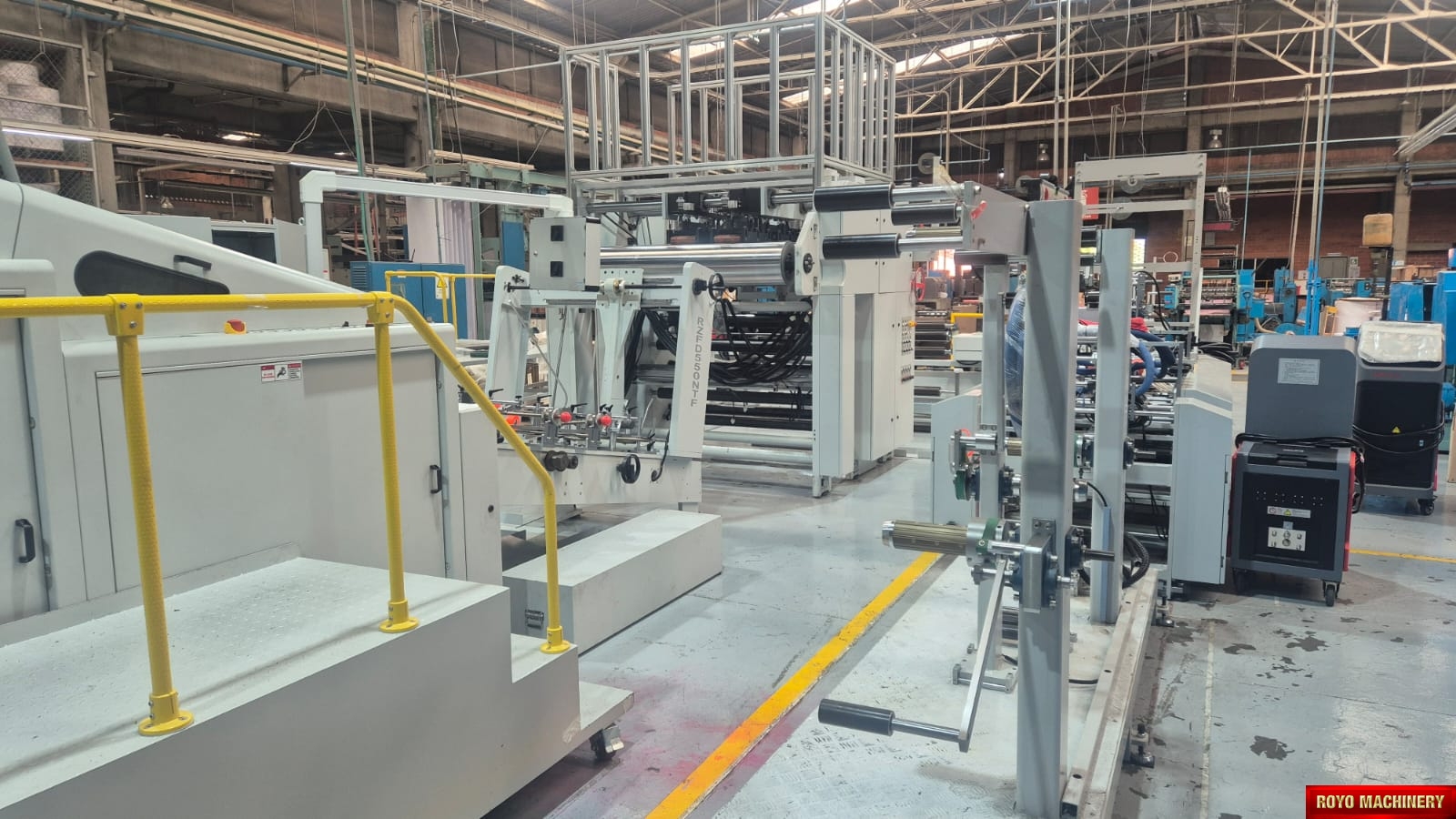

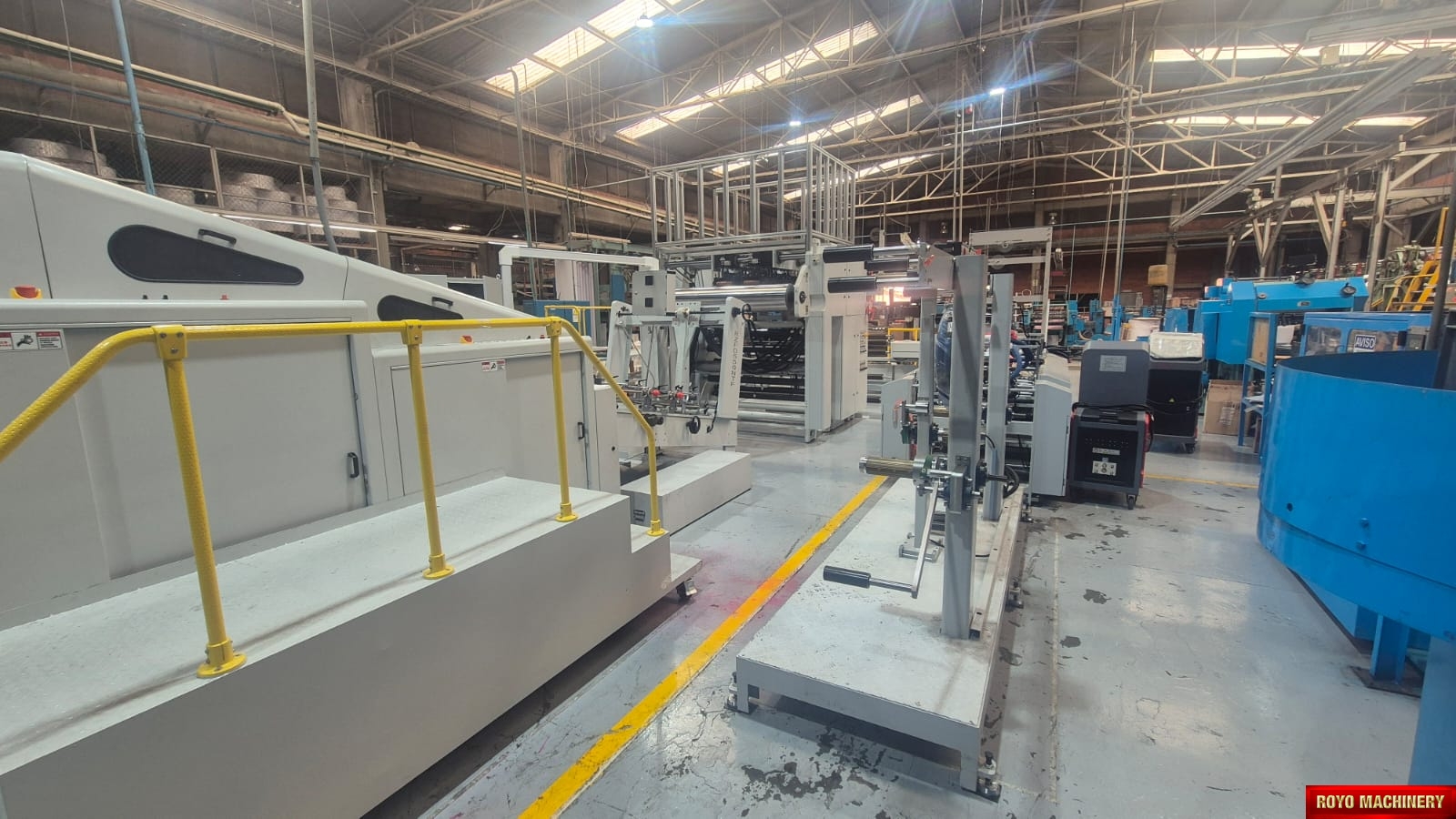

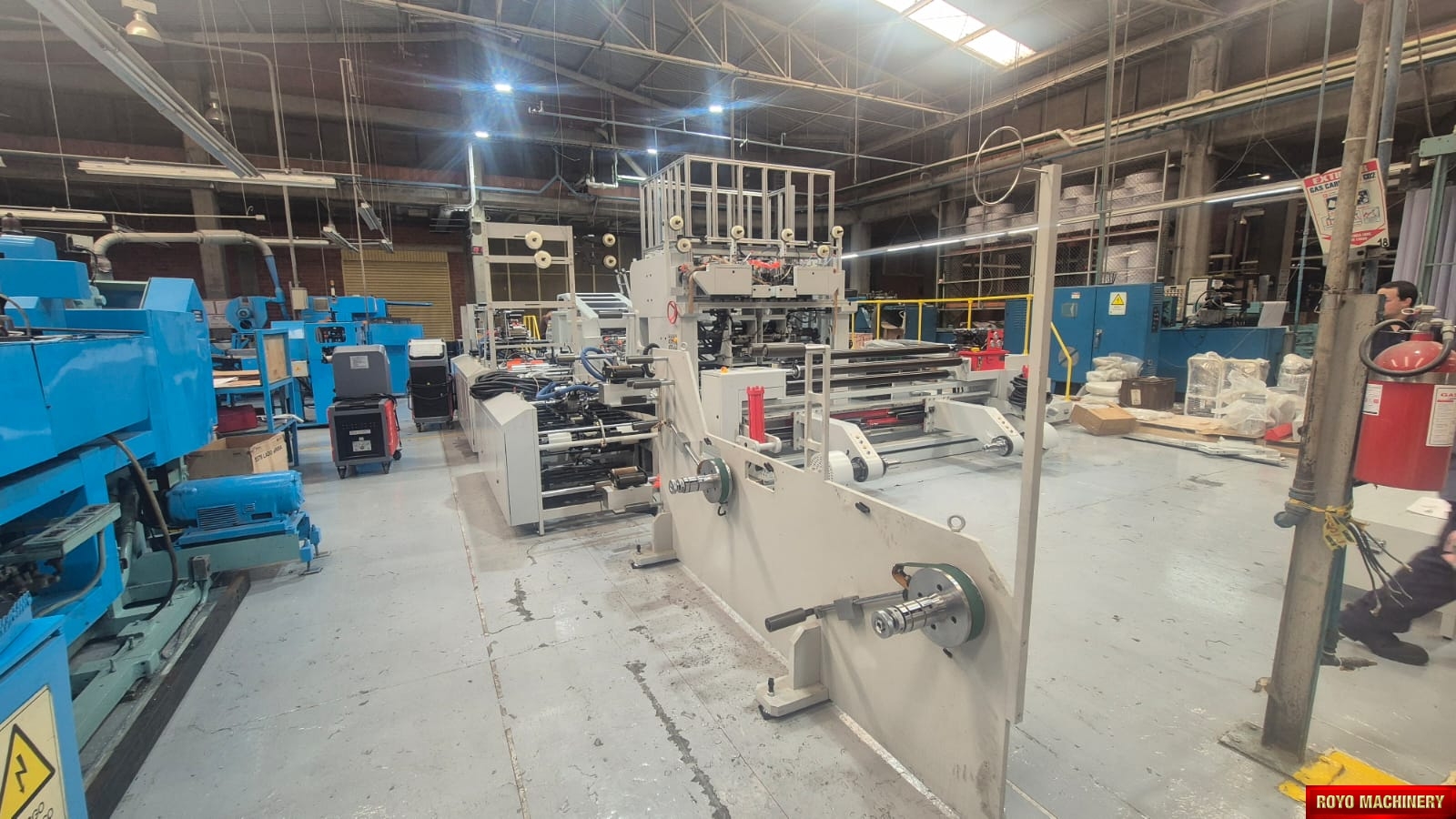

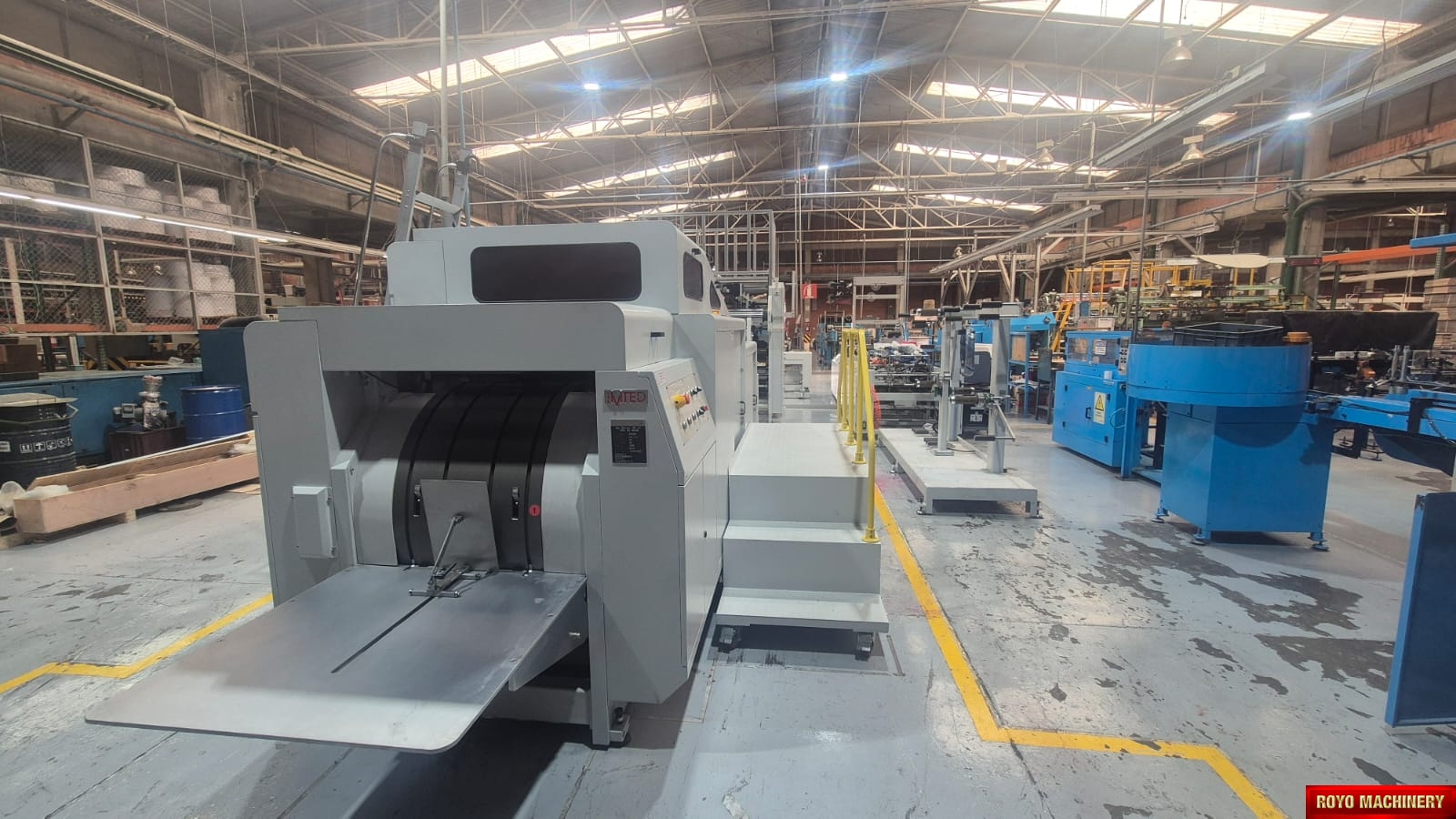

Royo Machinery RZFD-550NTF
Royo Machinery RZFD-550NTF
Royo Machinery RZFD-550NTF
Royo Machinery RZFD-550NTF
Royo Machinery RZFD-550NTF
Royo Machinery RZFD-550NTF
Royo Machinery RZFD-550NTF
Royo Machinery RZFD-550NTF
Royo Machinery RZFD-550NTF

Specifications

  • Equipment ID: 600
  • Type: Paper Bag Making Machine
  • Model: RZFD-550NTF
  • Manufacturer: Royo Machinery
  • Paper Size: NA
  • Condition: New

Features

Cut-off Length: 380-760 mm, Dimensions: 16000 x 8000 x 2700 mm, Flat handle making and inserting inline, German FARA bearings, Handle distance: 75/95mm, Max. Paper Roll Diameter: 1500mm, Max. Paper Roll Width: 1690mm, Max. Speed (with handles): 120 pcs/min, Max. Speed (without handles): 130 pcs/min, Max. Speed: 150 pcs/min, Min. Paper Roll Width: 710mm, Motorized shaftless hydraulic roll stand, Paper Bag Width: 240-550 mm, Paper reinforcement thickness: 100-130 gsm, Paper reinforcement width: 45-50mm, Paper roll core diameter: 76mm, Paper thickness: 80-140 gsm, Precision: +-0.2mm, SICK optical sensors, Square bottom bag making machine, Total Power: 55Kw, Vertical bag stacking system, Weight: 20t, Width of Bag Bottom: 120-260mm
