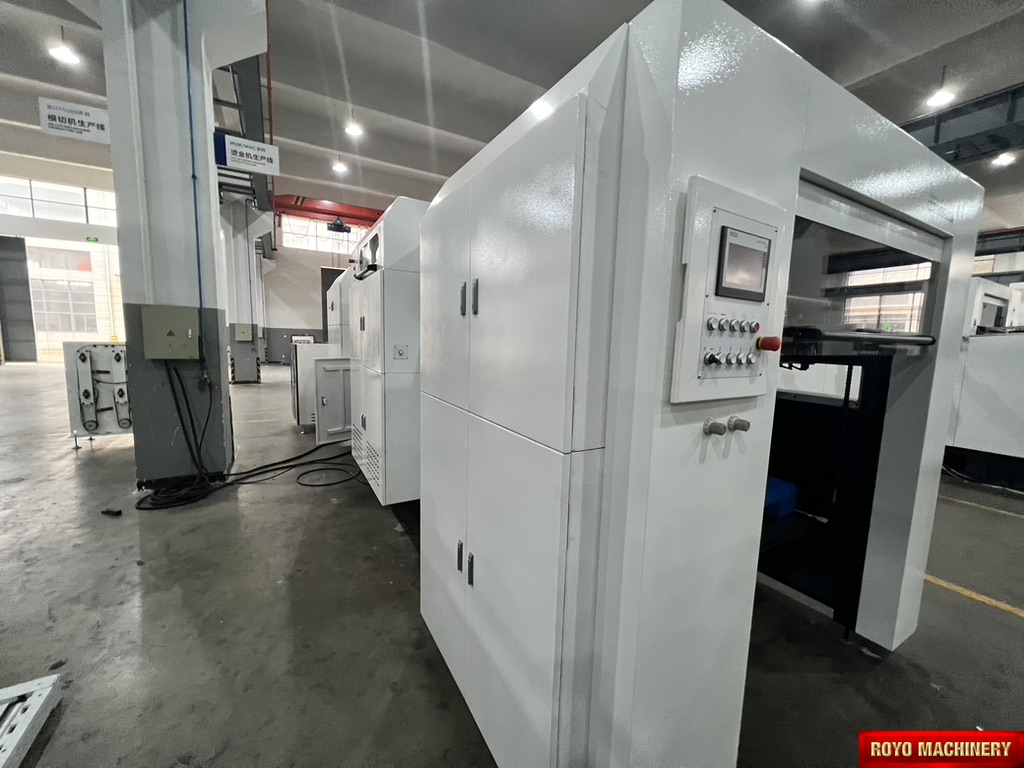

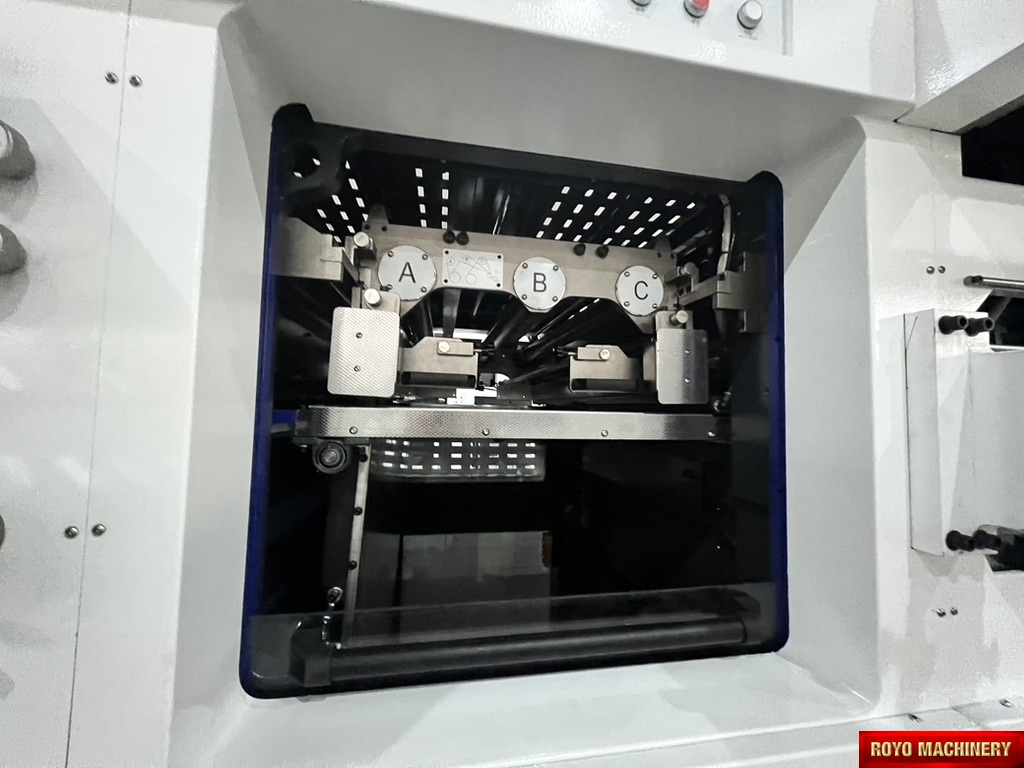

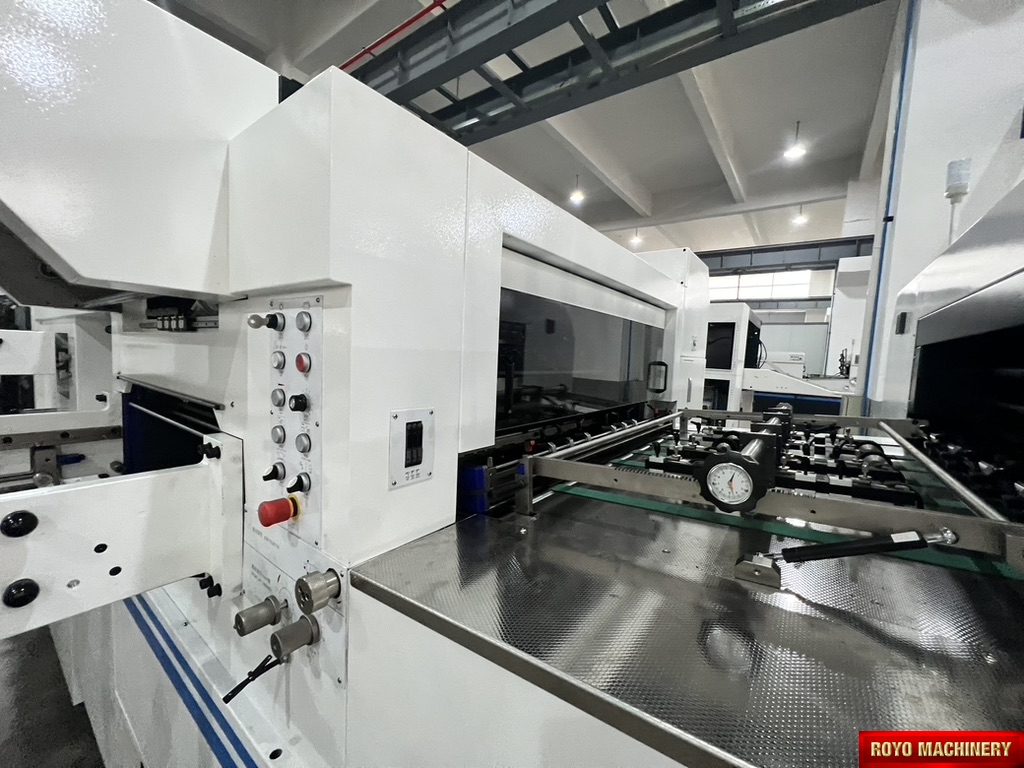

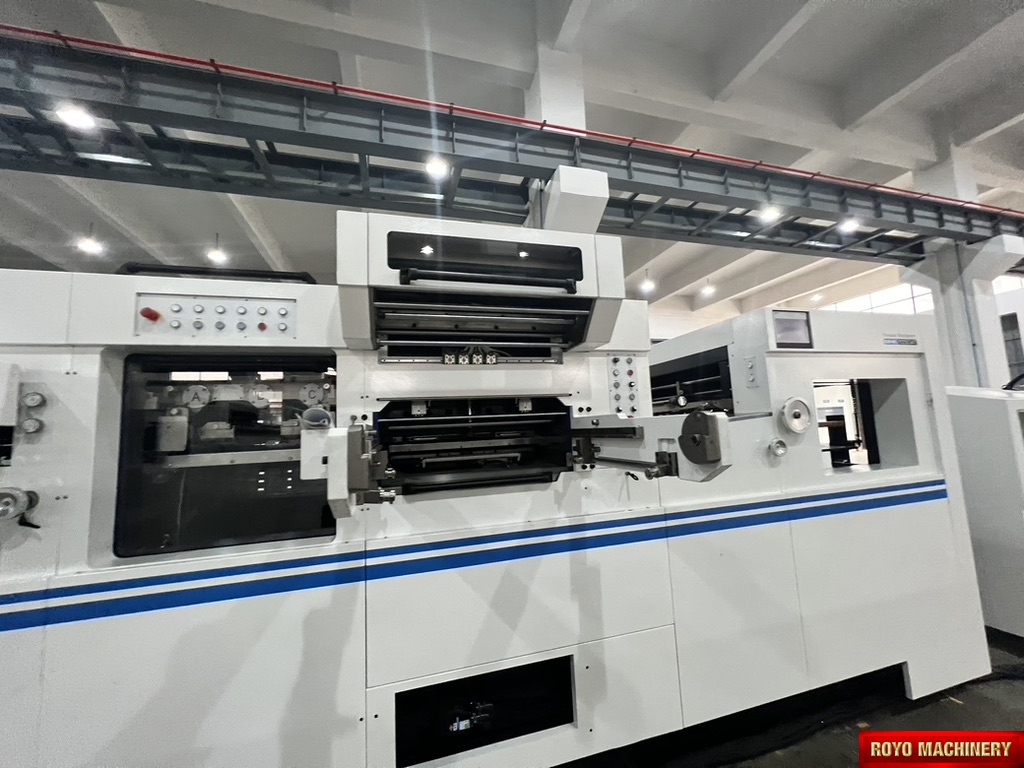

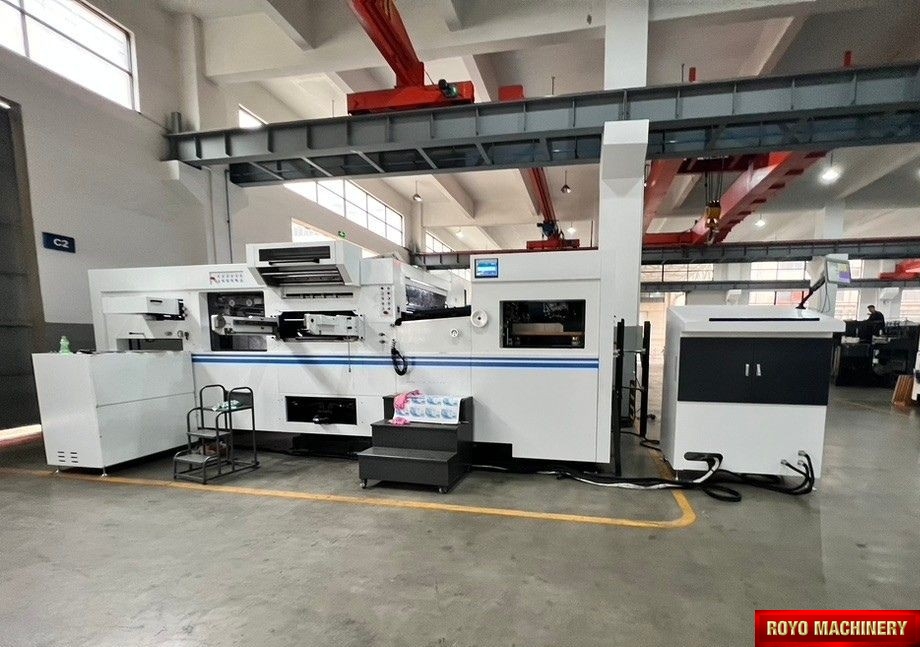

New Die Cutter Royo Machinery

Recommended height of cutting rules: 23.8mm, Min. paper size: 400 x 360mm, Max. paper size: 1050 x 750mm, Gripper Margin: 9-17 mm, Max. foil stamping size: 1040 x 720mm, Air pressure: 7 bar - 0.3 m3/min, Foil width: 20-1020mm, Max. foil roll diameter: 250mm (Longitudinal advance), Max. foil roll diameter: 200mm (Cross advance), Die cutting precision: +/- 0.075mm, Max. foil stamping speed: 7500 strokes per hour, Delivery Pile Height 1400 mm, Total Weight: 20.5 Tons, Dimensions: 7100x5017x2643mm, Max. die cutting pressure: 600 Tons, Heating zones: 20 adjustable 40-180°C, Inner chase size: 1123 x 760 mm, Max. stamping Size: 1040 x 720mm, Max. embossing size: 1040 x 720mm, Min. width of cuts: 10-18mm, Feeding Pile Height: 1600mm, Stamping precision: +/- 0.1mm, Embossing precision: +/- 0.075mm, Machine control via color touch screen, Heavy duty gripper bars, Heavy Duty, Digital LED control panel, Foil Stamping, Heating Zones: 20, Die cutting chase pneumatic locking mechanism, Central lubrication with auto pump , Corrugated board up to 4mm, CE Standard Machine, Automatic pressure adjustment, Voltage: 220V 3PH 60Hz, Remote service ready, Step-less speed control, Pull or Push side lay on both sides, Programmable foil advance, Pre-loader, Pneumatic die plate ejector, Non-stop feeder and delivery, Non stop sampling for test sheet removal, Micro adjustment device, Air clutch, Front edge stripping, Double action stripping
