New Die Cutter Royo Machinery

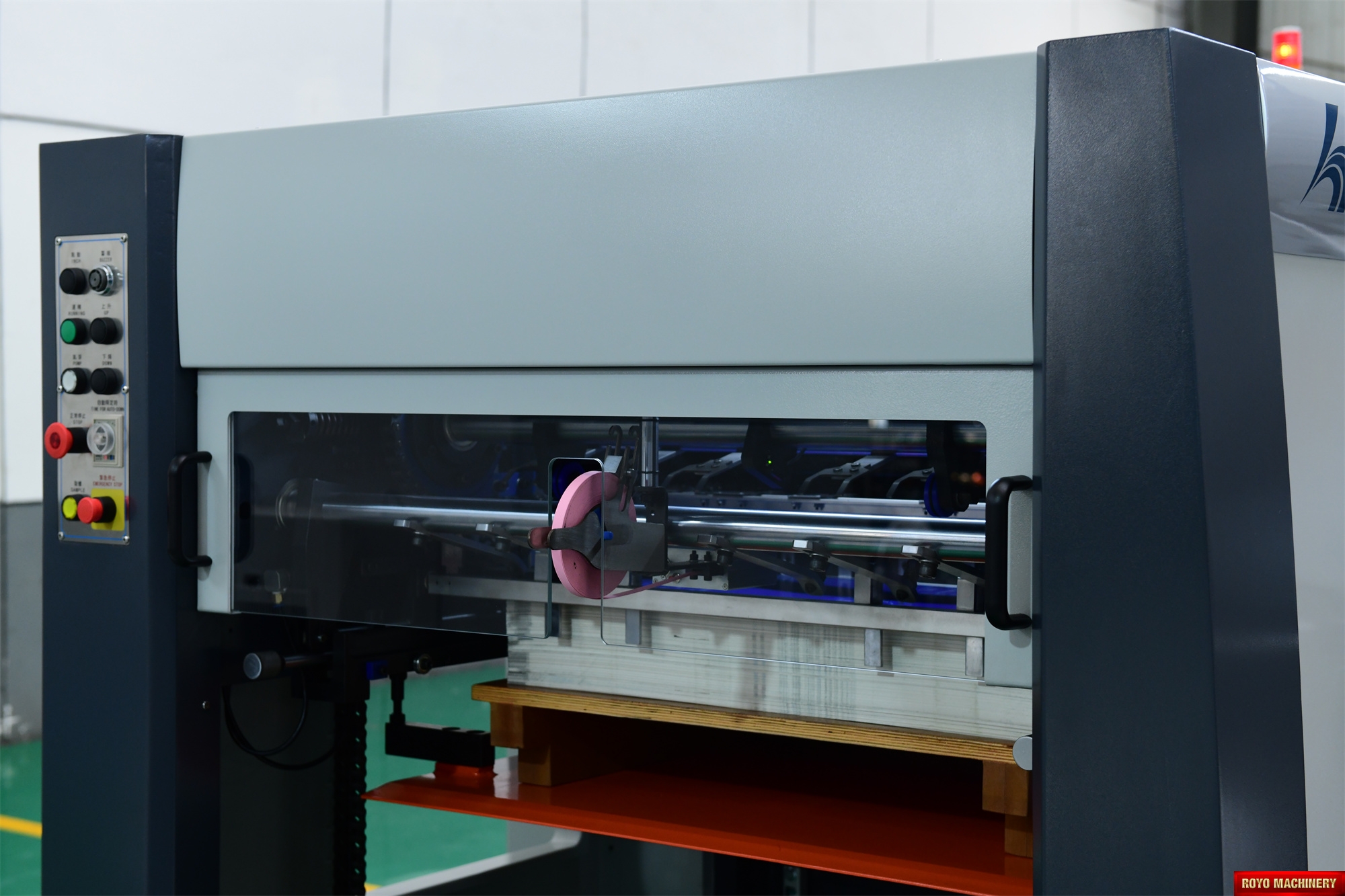

Royo Machinery RHT-760L
Royo Machinery RHT-760L
Royo Machinery RHT-760L
Royo Machinery RHT-760L
Royo Machinery RHT-760L
Royo Machinery RHT-760L
Royo Machinery RHT-760L
Royo Machinery RHT-760L
Royo Machinery RHT-760L

Specifications

  • Equipment ID: 677
  • Type: Die Cutter
  • Model: RHT-760L
  • Manufacturer: Royo Machinery
  • Paper Size: 610 x 760 mm
  • Condition: New

Features

4+1 mm combination steel plate, Advanced plate quick locking device, Air clutch, Automatic pressure adjustment, CE Standard Machine, Central lubrication with auto pump , Corrugated board up to 4mm, Delivery pile height: 1160 mm, Die cutting chase pneumatic locking mechanism, Die cutting Precision: +/- 0.15mm, Dimensions: 3700 x 2700 x 1740 mm, Feeding Pile Height: 1280mm, Max. die cutting pressure: 250 Tons, Max. Speed: 10000 strokes per hour, Min. distance to 1st rule: 12 mm, Min. gripper margin: 7 mm, Non-stop feeder and delivery, Paper or carboard thickness: 0.15-1.5 mm, Paper or cardboard thickness: 100-2000 gsm, Specifications are subject to change without notice, Total Power: 14kw, Total Weight: 10 Tons, Voltage: 220V 3PH 60Hz (Other voltages upon request)
