New Die Cutter Royo Machinery

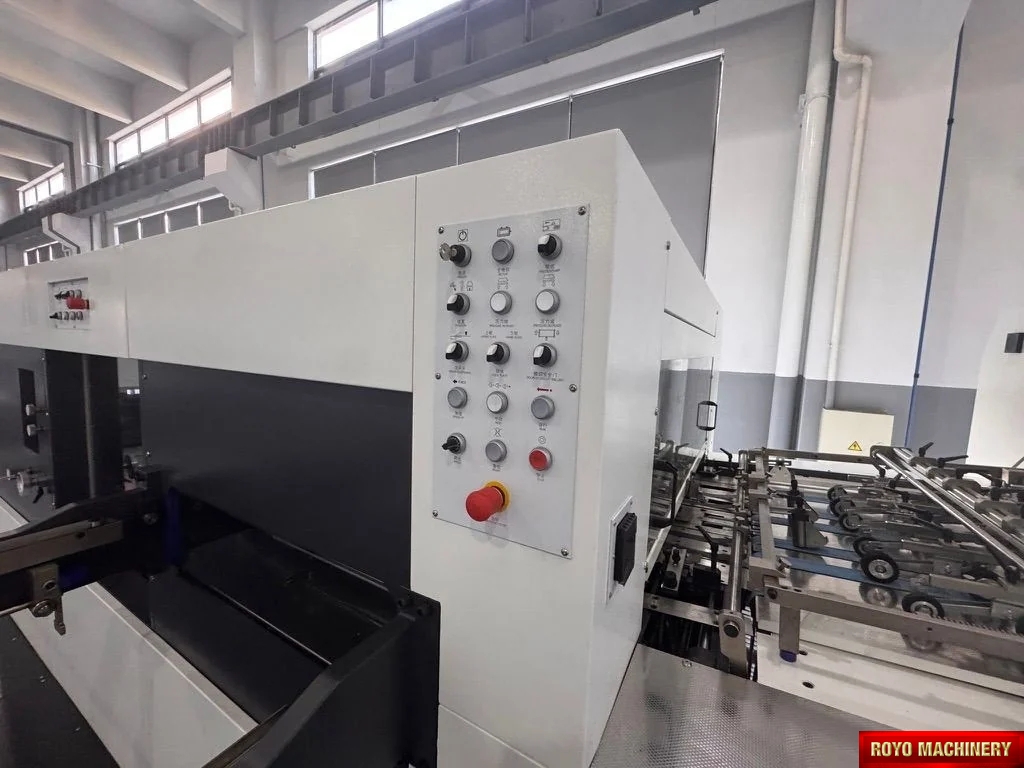

Royo Machinery RBHT-1060CE
Royo Machinery RBHT-1060CE
Royo Machinery RBHT-1060CE
Royo Machinery RBHT-1060CE
Royo Machinery RBHT-1060CE
Royo Machinery RBHT-1060CE
Royo Machinery RBHT-1060CE
Royo Machinery RBHT-1060CE
Royo Machinery RBHT-1060CE

Specifications

  • Equipment ID: 676
  • Type: Die Cutter
  • Model: RBHT-1060CE
  • Manufacturer: Royo Machinery
  • Paper Size: 1060 x 760 mm
  • Condition: New

Features

4+1 mm combination steel plate, Advanced plate quick locking device, Air clutch, Automatic pressure adjustment, Carbon fiber gripper bars, CE Standard Machine, Central lubrication with auto pump , Corrugated board up to 4mm, Delivery Pile Height 1480 mm, Die cutting chase pneumatic locking mechanism, Digital LED control panel, Dimensions: 10298 x 5857 x 2657 mm, Double action stripping, Feeding Pile Height: 1630mm, Front edge stripping, Gripper Margin: 9-17 mm, Heavy Duty, Heavy duty gripper bars, Inner chase size: 1080 x 770 mm, Machine control via color touch screen, Max. die cutting pressure: 300 Tons, Max. die cutting size 1060 x 745 mm, Max. paper size: 1060 x 760mm, Max. Speed with stripping: 8500 strokes per hour, Max. Speed: 9000 strokes per hour, Micro adjustment device for stripping frame, Min. Paper size: 400 x 350mm, Motorized front lays with optical monitoring, Non stop sampling for test sheet removal, Non-stop delivery with rolling curtain, Non-stop feeder and delivery, Paper or cardboard thickness: 0.1-2.0 mm, Paper or cardboard thickness: 80-2000 gsm, Pneumatic die plate ejector, Pre-loader, Pull or Push side lay on both sides, Recommended height of cutting rules: 23.8mm, Remote service ready, Step-less speed control, Suggested HS code: 8441.10.9000 (Automatic), Total Power: 26kw, Total Weight: 22 Tons, Ultrasonic & Mechanical double-sheet detector, Variable speed worm gear drive
