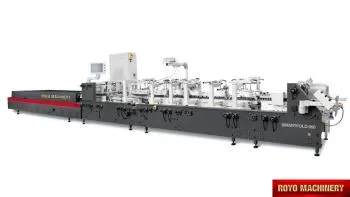

New Box Folder Gluer Royo Machinery

Side register section allows perfect blank alignment, Speed: 0-400m/min, Straight Line, Lock bottom: 90 degress pre-folding for No.3 line, Fully adjustable lateral feed gates, Folding hooks & helixes to fold front flaps, First and Third crease openers, Left hand glue flap pre-folder up to 180 degrees, Edge-grinder, One lower (left side) gluing tank, Delivery pneumatically adjusted, Crash lock bottom, Third crease line pre-folder up to 135 degrees, Two adjustable front feed knives , Two upper and two lower carriers, Upper and lower drive for length adjustment on the trombone, Accessories for B-type lock bottom, Adjustable electronic pile vibrator, Automatic belt tension on trombone, Carton thickness: 180-800 gsm, Configuration: Feeder-Pre Folding-Lock Bottom-Folding-Pressing, Corrugated flute type: N F E, Specifications are subject to change without notice, Min. Box size: 146 x 110mm Lock Bottom, Min. Box size: 136 x 75mm Side Gluing, Max. Box size: 800 x 780mm Side Gluing, Max. Box size: 800 x 750mm Lock Bottom, Dimensions: 15920 x 1660 x 1400 mm
