Troqueladora RMHK-1300FC Features: Suitable paper 1-8 mm corrugated paper (including laminated), Step-less speed control, Central lubrication with auto pump , Die cutting chase pneumatic locking mechanism, Digital LED control panel, Non-stop delivery with rolling curtain, Total Power: 22kw, Total Weight: 22 Tons, CE Standard Machine, Automatic pressure adjustment, Air clutch, Specifications are subject to change without notice, Suggested HS code: 8441.4000 (Automatic), Stock range: E B C A and AB flute corrugated board (1-8.5mm) , Recommended height of cutting rules: 23.8mm, Pull or Push side lay on both sides, Min. Paper size: 470 x 450mm, Max. Speed: 6000 strokes per hour, Max. Speed with stripping: 6000 strokes per hour, Max. paper size: 1290 x 940mm, Max. die cutting size 1280 x 920mm, Inner chase size: 51.5" x 37.3", Gripper Margin: 9-17 mm, Die cutting Precision: +/- 0.15mm, Air pressure: 7 bar - 1.0 m3/min, Dimensions: 10630 x 4820 x 2400 mm, Lead edge feeder with top loading, Hydraulic scissor lift, Remote service ready, Machine control via color touch screen, First cutting rule: 12mm, Ultrasonic & Mechanical double-sheet detector,

Troqueladora RMHK-1300FC Features: Suitable paper 1-8 mm corrugated paper (including laminated), Non-stop delivery with rolling curtain, Step-less speed control, Total Power: 22kw, Total Weight: 22 Tons, Central lubrication with auto pump , Die cutting chase pneumatic locking mechanism, Digital LED control panel, CE Standard Machine, Automatic pressure adjustment, Air clutch, Specifications are subject to change without notice, Suggested HS code: 8441.4000 (Automatic), Stock range: E B C A and AB flute corrugated board (1-8.5mm) , Recommended height of cutting rules: 23.8mm, Pull or Push side lay on both sides, Min. Paper size: 470 x 450mm, Max. Speed: 6000 strokes per hour, Max. Speed with stripping: 6000 strokes per hour, Max. paper size: 1290 x 940mm, Max. die cutting size 1280 x 920mm, Inner chase size: 51.5" x 37.3", Gripper Margin: 9-17 mm, Die cutting Precision: +/- 0.15mm, Air pressure: 7 bar - 1.0 m3/min, Dimensions: 10630 x 4820 x 2400 mm, Lead edge feeder with top loading, Hydraulic scissor lift, Remote service ready, Machine control via color touch screen, First cutting rule: 12mm, Ultrasonic & Mechanical double-sheet detector,

Troqueladora RBHT-1060SCE Features: Suggested HS code: 8441.4000 (Automatic), Ultrasonic & Mechanical double-sheet detector, Step-less speed control, Recommended height of cutting rules: 23.8mm, Pull or Push side lay on both sides, Pre-loader, Pneumatic die plate ejector, Dimensions: 10298 x 5857 x 2657 mm, Paper or cardboard thickness: 0.1-2.0 mm, Non-stop feeder and delivery, Total Weight: 22 Tons, Motorized front lays with optical monitoring, Min. Paper size: 400 x 350mm, Micro adjustment device, Heavy duty gripper bars, Max. paper size: 1060 x 760mm, Max. Speed: 8000 strokes per hour, Gripper Margin: 9-17 mm, Digital LED control panel, Die cutting chase pneumatic locking mechanism, Corrugated board up to 4mm, Central lubrication with auto pump , CE Standard Machine, Automatic pressure adjustment, Total Power: 26kw, Paper or cardboard thickness: 80-2000 gsm, Max. Speed with stripping: 7000 strokes per hour, Max. die cutting size 1060 x 745 mm, Max. die cutting pressure: 300 Tons, Inner chase size: 1080 x 770 mm, Feeding Pile Height: 1800 mm, Delivery Pile Height 1520 mm, Blanking unit with automatic pile ejector, Auto separation sheet inserting mechanism, Air clutch, Advance stripping and blanking tooling lockup, 4+1 mm combination steel plate,

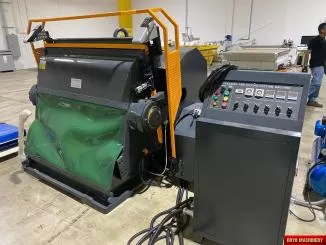

Troqueladora ML1600 Features: Voltage: 220V 3PH 60Hz, Triple electromechanical safety device, Total weight: 11.5 Tons, Total Power: 11kw, Suggested HS code: 8443.19.8000 (Manual), Recommended height of cutting rules: 23.8mm, IR safety lights, Hand Feed, Heating System, Inner chase size: 63" x 49.25" mm, Dust cover curtain, Dimensions: 112.25" x 88.5" x 82.75", Cycle control: Single cut and stop at the open position - time delay open position - continuous cycle, Central lubrication with auto pump , Air pressure: 7 bar - 0.3 m3/min, Air clutch, 5mm steel plate, Max. die cutting length: 1968", Gantry for chase removal, Specifications are subject to change without notice,

Troqueladora RMHC-1060CE Features: Voltage: 220V 3PH 60Hz, Total Power: 11kw, Suggested HS code: 8441.4000 (Automatic), Step-less speed control, Recommended height of cutting rules: 23.8mm, Pre-loader, Non-stop feeder and delivery, Min. Paper size: 400 x 350mm, Max. Speed: 7500 strokes per hour, Max. paper size: 1060 x 760mm, Max. die cutting pressure: 300 Tons, Inner chase size: 1120 x 786 mm, Frontal back and side registration mechanism, Die cutting Precision: +/- 0.15mm, Feeding Pile Height: 1600mm, Delivery Pile Height 1400 mm, Corrugated board up to 4mm, Central lubrication with auto pump , CE Standard Machine, Automatic pressure adjustment, Air pressure: 7 bar - 0.3 m3/min, Air clutch, Specifications are subject to change without notice,

Troqueladora RMHK-2S1050TMC Duopress Features: Step-less speed control, Suggested HS code: 8441.4000 (Automatic), Recommended height of cutting rules: 23.8mm, Programmable foil advance, Pre-loader, Non-stop feeder and delivery, Min. paper size: 400 x 360mm, Gripper Margin: 9-17 mm, Foil Stamping, Feeding Pile Height: 1600mm, Digital LED control panel, Die cutting precision: +/- 0.075mm, Die cutting chase pneumatic locking mechanism, Corrugated board up to 4mm, Delivery Pile Height 1400 mm, Central lubrication with auto pump , CE Standard Machine, Paper or cardboard thickness: 80-2000 gsm, Automatic pressure adjustment, Total Weight: 34 Tons, Air clutch, Total Power: 72kw, Pull or Push side lay on both sides, Max. Speed with stripping: 7200 strokes per hour, Max. Foil Stamping Speed: 7200 strokes per hour , Max. Foil stamping size: 1040 x 720mm, Max. paper size: 1050 x 750mm, Max. foil diameter: 250mm (Vertical) 200mm (Horizontal), Max. die cutting pressure: 600+300 Tons, Inner chase size: 1080 x 745 mm, Heating Zones: 20, Foil width: 20-1020mm, Foil feeding units: 3 (Longitudinal advance) , Foil feeding units: 2 (Transversal advance) , Air pressure: 7 bar - 1.0 m3/min, Max. die cutting size: 1040 x 720mm, Paper or cardboard thickness: 0.1-2.0 mm, Specifications are subject to change without notice,

Troqueladora RHT-810S Features: Total Weight: 13 Tons, Total Power: 18kw, Recommended height of cutting rules: 23.8mm, Min. paper size: 320 x 260 mm, Min. gripper margin: 7 mm, Max. Speed: 9000 strokes per hour, Max. paper size: 810 x 610 mm, Max. feeding pile height: 1480 mm, Max. die cutting size: 800 x 600 mm, Max. die cutting pressure: 500 Tons, Delivery pile height: 1360 mm, Inner chase size: 815 x 620 mm, First cutting rule: 12mm, Die cutting precision: +/- 0.075mm, Corrugated board up to 4mm, Paper or cardboard thickness: 80-2000 gsm, Specifications are subject to change without notice,

Troqueladora RHT-810T Features: Total Weight: 13 Tons, Total power: 45kw, Recommended height of cutting rules: 23.8mm, Min. Paper size: 320 x 260mm, Min. gripper margin: 7 mm, Min. distance to 1st rule: 12 mm, Max. paper size: 820 x 610 mm, Max. hologram speed: 7500s/h, Max. Foil Stamping Speed: 9000 strokes per hour, Max. Foil stamping size: 780 x 580 mm, Max. feeding pile height: 1480 mm, Max. die cutting size: 800 x 600 mm, Delivery pile height: 1360 mm, Max. die cutting pressure: 500 Tons, Inner chase size: 815 x 620 mm, Heating zones: 10, Heating temperature: 0-190°C, Feeding shaft: 3/6 (Option), Die cutting precision: +/- 0.075mm, Corrugated board up to 4mm, Paper or cardboard thickness: 80-2000 gsm, Specifications are subject to change without notice,

Troqueladora RHT-1060T Features: Air clutch, Automatic pressure adjustment, Central lubrication with auto pump , Max. die cutting pressure: 300 Tons, Frontal back and side registration mechanism, Foil Stamping, Foil feeding units: 3 (Longitudinal advance) , Foil feeding units: 2 (Transversal advance) , Feeding Pile Height: 1250mm, Die cutting chase pneumatic locking mechanism, Digital LED control panel, Delivery Pile Height 1100 mm, Corrugated board up to 4mm, Total Weight: 20 Tons, Total Power: 38kw, Paper or cardboard thickness: 0.1-2.0 mm, Non-stop feeder and delivery, Max. Speed: 7500 strokes per hour, Suggested HS code: 8441.4000 (Automatic), Step-less speed control, Programmable foil advance, Pre-loader, Non-stop delivery with rolling curtain, Pneumatic flap for test sheet removal, Max. Foil Stamping Speed: 7500 strokes per hour , Max. Foil stamping size: 970 x 700mm, Max. Foil Roll Diameter: 250mm (Longitudinal advance), Max. Foil Roll Diameter: 200mm (Cross advance), Heating Zones: 16, Dimensions: 5820 x 3865 x 2200mm, CE Standard Machine, Min. Paper size: 400 x 350mm, Specifications are subject to change without notice,

Troqueladora RHT-600 Features: Die cutting precision: +/- 0.075mm, Motorized front lays with optical monitoring, Max. Speed: 10000 strokes per hour, Gripper Margin: 8-17 mm, Digital LED control panel, Central lubrication with auto pump , CE Standard Machine, Automatic pressure adjustment, Air clutch, Total Weight: 5.5 Tons , Total Power: 10W, Frontal back and side registration mechanism, Min. paper size: 280 x 180mm, Max. paper size: 600 x 420mm, Max. feeding pile height: 900 mm, Max. die cutting size: 590 x 410mm, Dimensions: 3166 x 1890 x 1855 mm, Min. gripper margin: 9mm, Min. distance to 1st rule: 8-16mm, Max. die cutting pressure: 180 Tons, Inner chase size: 600 x 430 mm, Delivery pile height: 800 mm, Die cutting chase pneumatic locking mechanism, Suggested HS code: 8441.4000 (Automatic), Step-less speed control, Pull or Push side lay on both sides, Pneumatic flap for test sheet removal, Recommended height of cutting rules: 23.8mm, Die cutting plate size: 600 x 420mm, Corrugated board up to 4mm, Specifications are subject to change without notice,

Troqueladora RMHK-1500EFC Features: Suitable paper 1-8 mm corrugated paper (including laminated), Non-stop delivery with rolling curtain, Step-less speed control, Heavy Duty, Heavy duty gripper bars, Central lubrication with auto pump , Die cutting chase pneumatic locking mechanism, Digital LED control panel, CE Standard Machine, Automatic pressure adjustment, Air clutch, Specifications are subject to change without notice,

Troqueladora RBHT-1650EFC Features: Suitable paper 1-8 mm corrugated paper (including laminated), Step-less speed control, Remote service ready, Heavy duty gripper bars, Heavy Duty, Digital LED control panel, Die cutting chase pneumatic locking mechanism, Central lubrication with auto pump , CE Standard Machine, Automatic pressure adjustment, Air clutch, Total Weight: 38 Tons, Ultrasonic & Mechanical double-sheet detector, Total Power: 38kw, Stock range: E B C A and AB flute corrugated board (1-8.5mm) , Max. Speed with stripping: 6000 strokes per hour, Suggested HS code: 8441.4000 (Automatic), Min. distance to 1st rule: 12 mm, Max. paper size: 1650 x 1200mm, Max. die cutting pressure: 400 Tons, Max. die cutting size 1620 x 1180mm, Inner chase size: 1650 x 1230 mm, Frontal back and side registration mechanism, Dimensions: 11700 x 5470 x 2500 mm, Specifications are subject to change without notice, Machine control via color touch screen, Gripper Margin: 9-17 mm, Lead edge feeder with top loading, First cutting rule: 12mm, Die cutting Precision: +/- 0.15mm,

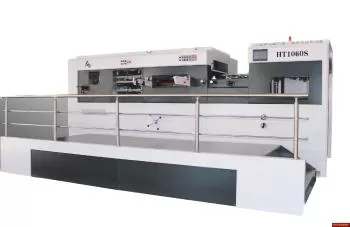

Troqueladora RHT-1060S Features: Air clutch, Automatic pressure adjustment, CE Standard Machine, Central lubrication with auto pump , Total Weight: 17.8 Tons, Total Power: 18kw, Step-less speed control, Pull or Push side lay on both sides, Paper or cardboard thickness: 100-2000 gsm, Min. Paper size: 400 x 350mm, Max. Speed: 8000 strokes per hour, Max. die cutting pressure: 300 Tons, Feeding Pile Height: 1580mm, Digital LED control panel, Die cutting Precision: +/- 0.15mm, Delivery Pile Height 1400 mm, Corrugated board up to 4mm, Specifications are subject to change without notice,

Troqueladora RHT-1060PG Features: Step-less speed control, Pre-loader, Non-stop feeder and delivery, Min. Paper size: 400 x 350mm, Max. Speed: 9000 strokes per hour, Max. Speed with stripping: 8500 strokes per hour, Max. die cutting pressure: 300 Tons, Heavy duty gripper bars, Digital LED control panel, Die cutting Precision: +/- 0.15mm, Die cutting chase pneumatic locking mechanism, Corrugated board up to 4mm, Central lubrication with auto pump , CE Standard Machine, Automatic pressure adjustment, Air clutch, Ultrasonic & Mechanical double-sheet detector, Pull or Push side lay on both sides, Pneumatic flap for test sheet removal, Non-stop delivery with rolling curtain, Motorized front lays with optical monitoring, Min. distance to 1st rule: 8 mm, Voltage: 220V 3PH 60Hz, Total Weight: 20 Tons, Total Power: 20kw, Suggested HS code: 8441.4000 (Automatic), Heavy Duty, Gripper Margin: 9-17 mm, Feeding Pile Height: 1580mm, Delivery Pile Height 1400 mm, Max. paper size: 1060 x 760mm, Max. die cutting size 1050 x 750mm, Specifications are subject to change without notice,

Troqueladora RMHC-1500 Features: Suitable paper 1-8 mm corrugated paper (including laminated), Min. Paper size: 470 x 450mm, Dimensions: 6633 x 4600 x 2300 mm, Max. die cutting size 1480 x 1080mm, Max. paper size: 1500 x 1100mm, Max. Speed: 5000 strokes per hour, Total Weight: 17 Tons, Total Power: 13.5kw, Automatic pressure adjustment, Step-less speed control, Pre-loader, Central lubrication with auto pump , Die cutting chase pneumatic locking mechanism, Digital LED control panel, Hand Feed, Heavy duty gripper bars, Air clutch, Heavy Duty, Specifications are subject to change without notice,
